setting up steinberg cubase for daw control mode
print icon

🎞️ Find a video regarding Osmose CE DAW Control for Steinberg Cubase here. Please note that the USB MIDI Port for DAW Control is Port #4 for Osmose synth, not Port #3 as it is the case for Osmose CE.

1) daw control script installation

To install the DAW Control script for Cubase, log in to your Expressive E user account and click on ‘my products‘. If you haven’t registered your Osmose yet, do this step first. Find your Osmose in the ‘my products‘-page, click the download button. Choose the DAW scripts that are correct for your computer, either mac or windows. Once the scripts are downloaded, unzip them, and install the Cubase script for your specif. Follow the on-screen instructions. Ensure Cubase is closed before installing. After completion, open up Cubase and verify the settings below are correct.

2) configuring the MIDI ports

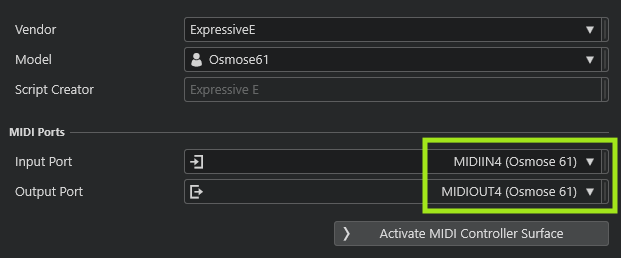

If not working automatically, go to Studio -> MIDI Remote Manager, click ‘Add Surface‘, then select ‘ExpressiveE‘ as Vendor, and choose your Osmose model.
Select Port 4 (labeled ‘daw control‘ in macOS) for input and output of the control surface.




For the instrument track, use Note Expression device Osmose (USB MIDI Port 1, labeled ‘Osmose play‘ in macOS) as input, and be sure to forward ‘Any’ MIDI channel to the plugin:


If Osmose still doesn’t offer DAW Control mode despite it being connected to your computer that is running Cubase 15+, please check our 🔗DAW script troubleshooting Steinberg Cubase
